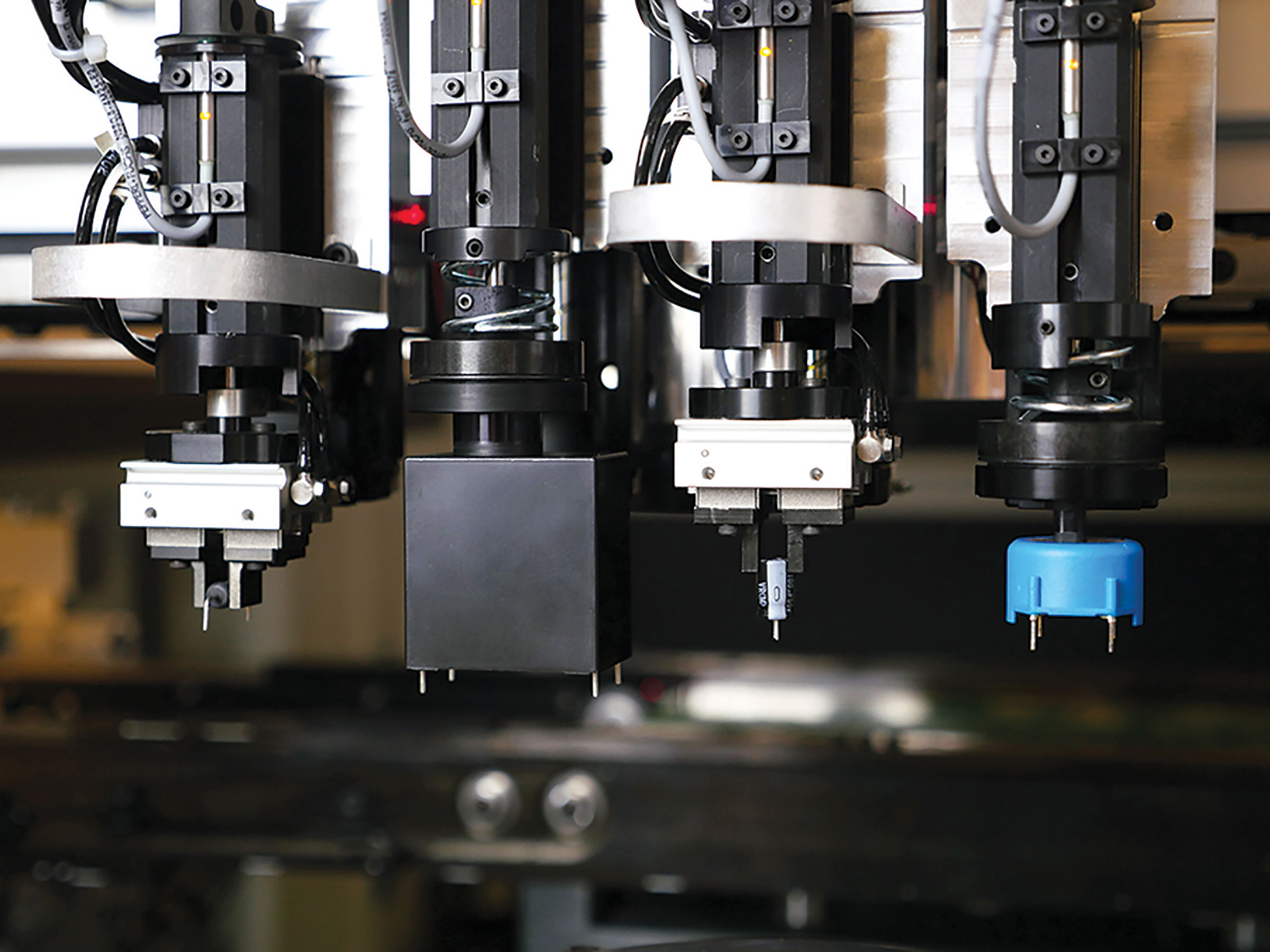

PRECISION & ODD-FORM

ASSEMBLY

FUZION PLATFORM

Fuzion® offers a flexible, high-speed platform solution with plug-and-play adaptability for specialized application-specific tooling. Build your most challenging products with precise, repeatable closed-loop processes – and confidence.

FUZIONOF Platform

FuzionOF™ continues Universal’s lineage of implementing odd-form solutions on a standard surface mount platform, delivering unmatched performance for a diverse range of pin-in-paste odd-form, surface mount odd-form and standard surface mount applications.

UFLEX AUTOMATION PLATFORM

Uflex™ is the ultimate flexible assembly cell for all forms of odd-form insertion and mechanical assembly operations, enabling automated assembly without dedicated hard-tooled systems.

OMNI INSERTER

The Omni™ Inserter provides single-process efficiency to complement multi-process cells and maximize line utilization while minimizing floor space requirements.

FUZION PLATFORM

For electronics manufacturers who demand an agile, flexible production model without limitations, Fuzion® is the pinnacle of platform performance. Fuzion is the industry’s most adaptable and capable platform, delivering profitable productivity for any manufacturing model from NPI to ultra-high volumes. Fuzion drives operational excellence, enabling manufacturers to build any product at any time, accelerate new product introduction and ramp to volume, and maximize utilization, quality, and yield.

  • 1, 2, 4-beam variants
  • Extra-capacity (XC) models with up to 272 feeder inputs
  • Versatile multi-task odd-form (OF) model
  • Throughput up to 140,000 cph per module
  • Industry-leading cost per placement, flexibility and accuracy
  • Largest board size capability
  • Closed-loop processes to ensure the highest yields
  • Maximum performance and utilization for any volume/product mix
  • Comprehensive toolset to accelerate NPI and achieve 100% first-pass yield
  • Ability to prototype on a single module
  • Lowest cost of operation and ownership
Hidden Toggle

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

FUZION MODELS & SPECS
  • FuzionOF – Versatile IC placement platform perfect for special processes such as Pin-in-Paste, Flip Chip and OFA
  • Fuzion1-11 – Flexible IC placement platform perfect for NPI or complex SMT
  • Fuzion1-30 – Superb for high-mix NPI environments and large board applications. Also a high-volume line booster.
  • Fuzion2-14 – Best-in-class multi-function machine with fast placement of a wide component range for applications where flexibility and performance per line length are important
  • Fuzion2-37 – A true multi-purpose platform. A versatile stand-alone prototyping solution, a flexible line balancer, or a high-performance multi-function solution.
  • Fuzion2-60 – Flexible, high-speed productivity for medium-volume environments. A powerful line booster solution or high-performance small part placer.
  • FuzionXC2-37 – High-capacity NPI, all-in-one, line balancer, or multifunction solution with a full component range
  • FuzionXC2-60 – Cost-efficient, high-performance turret replacement or high-input chip placer
  • Fuzion4-120 – Powerful performance for high-volume production environments: Consumer, Mobile, Notebook, Automotive
Max Throughput (cph)
FuzionOF
16,500
Fuzion1-11
16,500
Fuzion1-30
35,000
Fuzion2-14
30,750
Fuzion2-37
48,000
Fuzion2-60
66,500
FuzionXC2-37
43,000
FuzionXC2-60
65,500
Fuzion4-120
140,000
Accuracy (µm) at greater than 1.00 Cpk
FuzionOF
±38 (Chips) / ±27 (ICs)
Fuzion1-11
±38 (Chips) / ±27 (ICs)
Fuzion1-30
±34 (Chips) / ±34 (ICs)
Fuzion2-14
±38 (Chips) / ±27 (ICs)
Fuzion2-37
±34 (Chips) / ±27 (ICs)
Fuzion2-60
±34 (Chips) / ±34 (ICs)
FuzionXC2-37
±34 (Chips) / ±27 (ICs)
FuzionXC2-60
±34 (Chips) / ±34 (ICs)
Fuzion4-120
±34 (Chips) / ±34 (ICs)
Max Board Size
FuzionOF
508 x 813mm
Fuzion1-11
508 x 813mm
Fuzion1-30
508 x 1016mm
Fuzion2-14
508 x 813mm
Fuzion2-37
508 x 1016mm
Fuzion2-60
508 x 1016mm
FuzionXC2-37
610 X 1300mm
FuzionXC2-60
610 X 1300mm
Fuzion4-120
500 x 700mm
Max Feeder Inputs (8mm)
FuzionOF
120 (2 ULC)
Fuzion1-11
120 (2 ULC)
Fuzion1-30
136
Fuzion2-14
120 (2 ULC)
Fuzion2-37
128 (1 ULC)
Fuzion2-60
136
FuzionXC2-37
272
FuzionXC2-60
264
Fuzion4-120
144
Component Range
FuzionOF
0201 – 150mm sq, 25mm tall
Fuzion1-11
0201 – 150mm sq, 25mm tall
Fuzion1-30
01005 – 30mm sq
Fuzion2-14
0201 – 150mm sq, 25mm tall
Fuzion2-37
01005 – 150mm sq, 25mm tall
Fuzion2-60
01005 – 30mm sq
FuzionXC2-37
01005 – 150mm sq, 25mm tall
FuzionXC2-60
01005 – 30mm sq
Fuzion4-120
01005 – 30mm sq

FUZIONOF PLATFORM

FuzionOF™ features the highest available odd-form automation throughput to reduce cycle times and eliminate bottlenecks. It handles a full range of standard SMT and non-traditional components up to 150mm square and up to 40mm tall, with 5kg placement force. With the most complete range of component handling and input types, a wide variety of standard tooling, and custom design and implementation services, FuzionOF addresses virtually any odd-form application. It also incorporates precise, repeatable, closed-loop processes that reduce defects, rework and waste. FuzionOF transforms back-end assembly into a strategic advantage.

  • Single-beam platform with throughput up to 16,500 cph
  • Full range of SM components to pin-in-paste and all odd parts in between
  • 0201 – 55mm square (SFoV) and 150mm square (MFoV)
  • Components up to 33mm tall, up to 5kg placement force
  • Adjustable gripper and full array of odd-form nozzles; broad tooling portfolio
  • Highest online capacity, widest range of feeder input types
  • Improve output and yields vs. manual assembly; accelerate ROI with rapid payback
Hidden Toggle

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

FUZIONOF MODELS & SPECS
  • FuzionOF – Versatile IC placement platform perfect for special processes such as Pin-in-Paste, Flip Chip and OFA
Throughput (cph)
FuzionOF
16,500 (Max) / 11,400 (1-Bd IPC Chips)
Accuracy (µm) at greater than 1.00 Cpk
FuzionOF
±38 (Chips) / ±27 (ICs)
Max Board Size
FuzionOF
508 x 813mm (20 x 32")
Max Feeder Inputs (8mm)
FuzionOF
120 (2 ULC)
Component Range (mm)
FuzionOF
(0201)_ .25 x .5 x .15 (Min) / 150 square & up to 25 tall

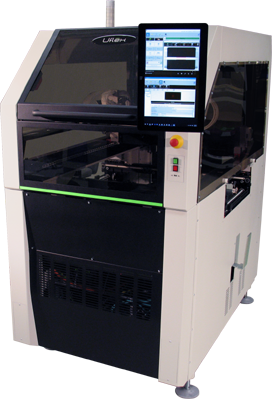

uflex automation PLATFORM

The Uflex™ flexible automation platform provides exclusive value by breaking traditional automation barriers. It features a small footprint and delivers cost-effective automation by quickly transitioning to a comprehensive array of standard and third-party tooling, as well as numerous feeding options, to perform virtually any automation task. Uflex supports up to four high-speed vacuum spindles or three high-speed pneumatic grippers. It offers investment protection versus custom cells designed for a single task, and can lower the cost per insertion by more than 95% versus manual assembly process while substantially improving quality and yields.

  • Radial and axial insertion
  • 2K to 3K insertions per hour is typical
  • Large-part support up to 60mm tall, 50mm diameter, 1 lb in weight
  • Easily reconfigured for other operations
  • Add Uflex cells to enhance capability
  • Dispensing, screw driving, labeling, test handling, and more
Hidden Toggle

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

UFLEX MODELS & SPECS




Uflex Specifications
Insertion Rate
1.2 sec/component (Max with 3-component gang pick)
Board Size (W x D x H)
50 x 75 x 0.5mm (Min) to 630 x 508 x 12mm (Max)
Insertion Heads)
2 pneumatic grippers (Max) or 3 vacuum grippers/nozzle (Max)
Max Component Size (W x D x H)
127 x 127 x 100mm (Max)
Feeder Interface
700mm wide, supports up to 10 feeding devices
Positioning System
Lead screw drive with 2G acceleration, 2m/sec speed
Accuracy / Repeatability
50µm accuracy, 8µm repeatability
Automation Processes
Pick & place (including clinch), dispensing, screw driving, inspection, test handling, and more
Machine Dimensions (W x D x H)
1000 x 1700 x 1830mm

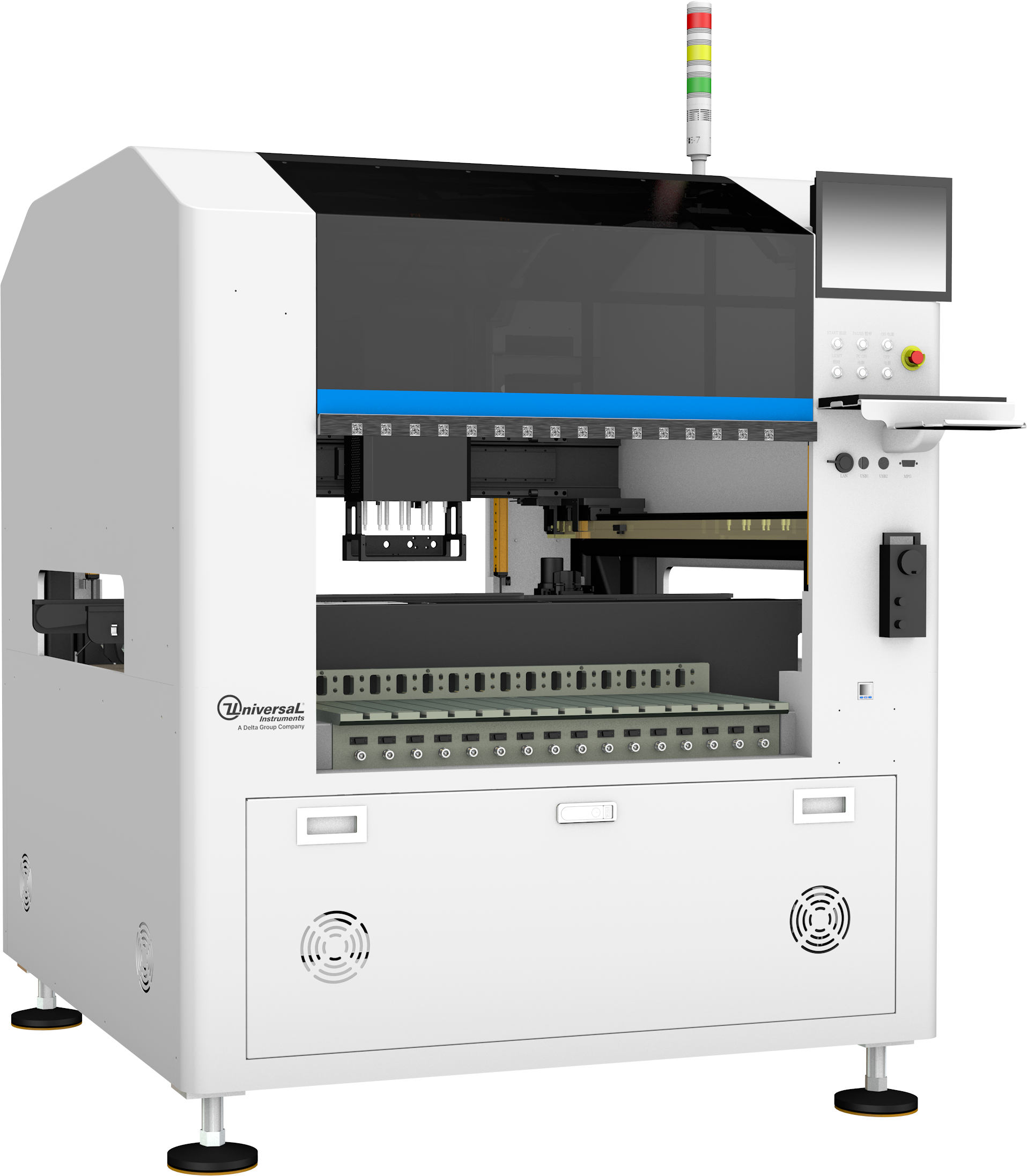

OMNI INSERTER

Universal Instruments’ Value Series brings cost-effective intelligence, ease of use and simplicity to back-end electronics assembly automation. The Omni™ Inserter leverages a linear-motor positioning system and a host of intelligent features to deliver accurate, high-speed insertion of axial, radial and other odd-form components. It supports a range of feeder types, and features an active clinch and controlled insertion force.

  • Four independent insertion heads with standard active clinch
  • High-force & programmable insertion modes; force monitoring
  • Four upward-looking cameras utilizing AI & AOI vision algorithms
  • Best-fit insertion algorithm
  • CAD data import
  • Independent pick & place sequences
  • Portfolio of standard feeders; on-the-fly replenishment
  • Board shuffle mode (available on belt conveyor configuration)​
Hidden Toggle

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

OMNI INSERTER MODELS & SPECS




Omni Inserter Specifications
Positioning System
Single-gantry linear motor
Insertion Heads
4 heads, independent Z and theta rotation
Component Picking Method
Pneumatic gripper, vacuum nozzle
Cameras
4 ULCs for components / 1 fiducial camera
Feeder Inputs
6 inputs
Insertion Rate
1.35 seconds/pc *1
Throughput
2,600 cph
Insertion Success Rate
Greater than 99% *2
Insertion Accuracy
±50μm
Reject Rate
Less than 1% *3
PCB Dimensions
Minimum size: 100mm [W] x 50mm [L], Maximum size: 400mm [W] x 400mm [L] (standard), 400mm [W] x 500mm [L] (option)
PCB Thickness
Bare board 1.2-2.0mm / Carrier less than/=10mm
Max Component Size
diameter: 35mm, height: 40mm, weight: less than/=50g
Max Weight of PCB & Carrier
5kg
