Limited-Time Offer On FireWire Cameras

BUY NOW – Take your Fuzion™ machine to the next level with premium FireWire cameras from Universal Instruments. Browse our robust selection of cameras below and reach out to your regional representative here to take advantage of this limited time only deal.

Save up to 25% on select FireWire cameras

How can more FireWire cameras benefit your line?

  • Expand component range utilizing alternate field-of-view cameras
  • Improve overall flexibility
  • Introduce ‘new’ resolutions to reoptimize your line & receive better through-put
  • Provide security in the event of a camera failure

Pattern Error Correction (PEC) Cameras – for FZ30 (30-spindle) and FZ7 (in-line 7) Heads

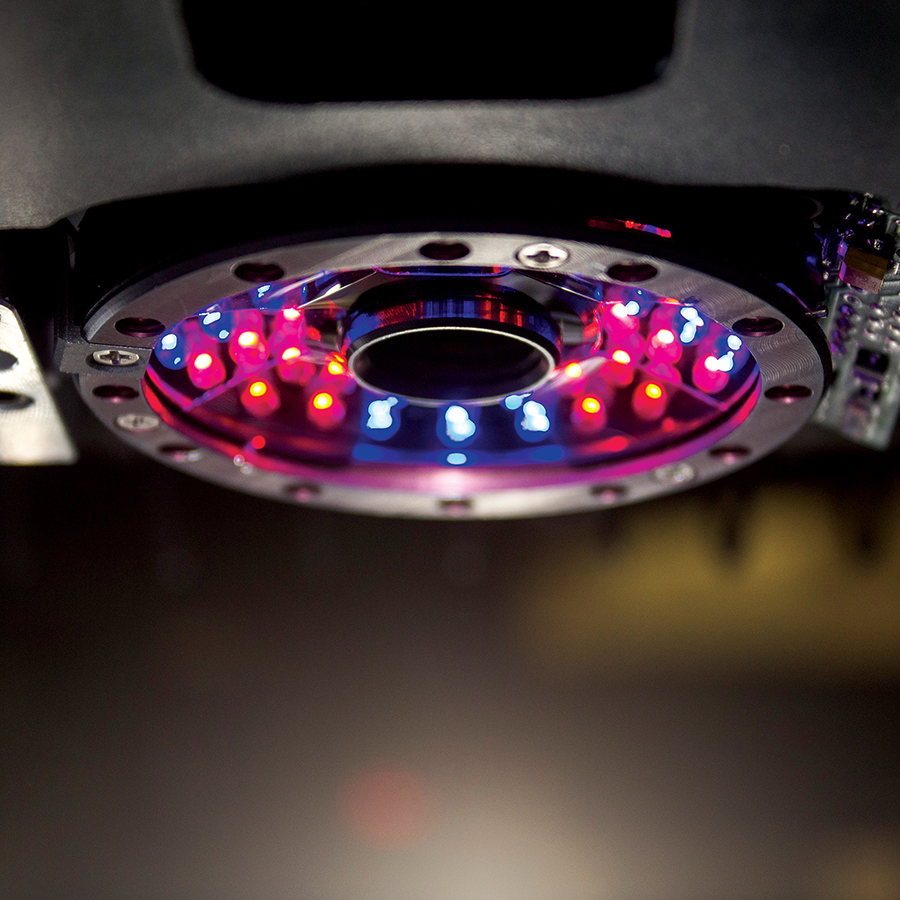

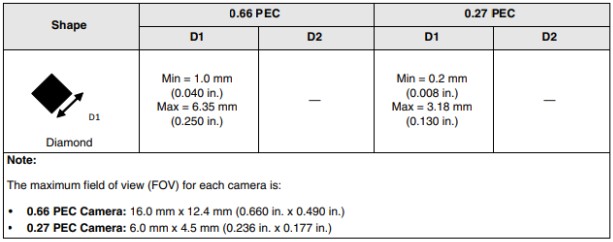

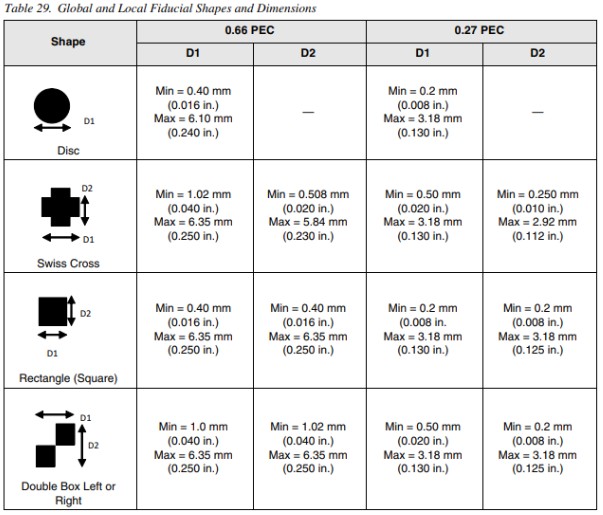

Pattern Error Correction cameras are fiducial inspection cameras for Fuzion machines. All Fuzion machines come with one PEC camera per beam. Various replacement packages available based on need.

NOTE: Each PEC camera listed corresponds with a specific beam in your machine: beam 1 or beam 2. Single beam Fuzion machines use beam 1 cameras.

These cameras can also process bar codes for traceability purposes. The following bar codes are supported:

  • 2D Data Matrix
  • 2D QR Code
  • 1D Bar code 39
  • 1D Bar code 128
  • 1D PDF 417

Want to place an Order? Contact your regional representative here or e-mail one of our spare parts representatives at universal@uic.com.

Click link below for pricing:

Camera Promotion Items & Pricing

Pattern Error Correction (PEC) Cameras – for FZ30 (30-spindle) and FZ7 (in-line 7) Heads

Pattern Error Correction cameras are fiducial inspection cameras for Fuzion machines. All Fuzion machines come with one PEC camera per beam. Various replacement packages available based on need.

NOTE: Each PEC camera listed corresponds with a specific beam in your machine: beam 1 or beam 2. Single beam Fuzion machines use beam 1 cameras.

These cameras can also process bar codes for traceability purposes. The following bar codes are supported:

  • 2D Data Matrix
  • 2D QR Code
  • 1D Bar code 39
  • 1D Bar code 128
  • 1D PDF 417
Hidden Toggle

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

PATTERN ERROR CORRECTION (PEC) CAMERAS

Pattern error correction (PEC) cameras that travel with the beam in the Fuzion machine. Some come with assembly kits and/or new lighting cables. NOTE: Each PEC camera listed corresponds with a specific beam in your machine – beam 1 or beam 2. Single beam Fuzion machines use beam 1 cameras.




Part Number
  • 52214606
  • 52214805
  • 52214704
  • 52214904
  • 53135407
  • 53135408
  • 52214607
Item Name
  • BEAM 1 0.66MPP FIREWIRE PATTERN ERROR CORRECTION CAMERA
  • BEAM 1 0.66MPP FIREWIRE PATTERN ERROR CORRECTION CAMERA WITH ASSEMBLY KIT & NEW LIGHTING CABLE
  • BEAM 2 0.66MPP FIREWIRE PATTERN ERROR CORRECTION CAMERA
  • BEAM 2 0.66MPP FIREWIRE PATTERN ERROR CORRECTION CAMERA WITH ASSEMBLY KIT & NEW LIGHTING CABLE
  • BEAM 1 0.27 MPP FIREWIRE PATTERN ERROR CORRECTION CAMERA
  • BEAM 2 0.27 MPP FIREWIRE PATTERN ERROR CORRECTION CAMERA
  • BEAM 1 0.76MPP FIREWIRE PATTERN ERROR CORRECTION CAMERA (RAISED GANTRY)
Specifications
  • Pattern error correction 0.66 mils/pixel camera that is mounted on the beam in the Fuzion machine. Specifically designed for Beam 1. Includes replacement camera only.
  • Pattern error correction 0.66 mils/pixel camera that is mounted on the beam in the Fuzion machine. Comes with camera plus new lighting cable - shielded within cable to reduce susceptibility to electrical noise and error. Specifically designed for Beam 1. Includes camera and full camera system replacement.
  • Pattern error correction 0.66 mils/pixel camera that is mounted on the beam in the Fuzion machine. Specifically designed for Beam 2. Includes replacement camera only.
  • Pattern error correction 0.66 mils/pixel camera that is mounted on the beam in the Fuzion machine. Comes with camera plus new PEC lighting cable - shielded within cable to reduce suspectiblity to electrical noise and error. Specifically designed for Beam 2. Includes camera and full camera system replacement.
  • Pattern error correction 0.27 mils/pixel magnification that is mounted on the beam in the Fuzion machine. Specifically designed for Beam 1.
  • Pattern error correction 0.27 mils/pixel camera that is mounted on the beam in the Fuzion machine. Specifically designed for Beam 2.
  • Pattern error correction 0.76 mils/pixel camera that is mounted on the beam in the Fuzion machine. Specifically designed for Beam 1 in concert with a raised gantry setup. NOTE: The same camera is not available for Beam 2 at this time.
Functionality
  • All Fuzion machines are equipped with one per beam. Compatible with both the FZ30 (30-spindle) and FZ7 (in-line 7) Heads. Purchasing ensures operational continuity if faced with delays and minimize downtime. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again.
  • All Fuzion machines are equipped with one per beam. Compatible with both the FZ30 (30-spindle) and FZ7 (in-line 7) Heads. Provides improved stability: added electrical shielding for more robust function. Purchasing ensures operational continuity if faced with delays and minimize downtime. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again.
  • All Fuzion machines are equipped with one per beam. Compatible with both the FZ30 (30-spindle) and FZ7 (in-line 7) Heads. Purchasing ensures operational continuity if faced with delays and minimize downtime. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again.
  • All Fuzion machines are equipped with one per beam. Compatible with both the FZ30 (30-spindle) and FZ7 (in-line 7) Heads. Provides improved stability: added electrical shielding for more robust function. Purchasing ensures operational continuity if faced with delays and minimize downtime. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again.
  • All Fuzion machines are equipped with one per beam. Compatible with the FZ7 (in-line 7) Head. Purchasing ensures operational continuity if faced with delays and minimize downtime. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again.
  • All Fuzion machines are equipped with one per beam. Compatible with the FZ7 (in-line 7) Head. Purchasing ensures operational continuity if faced with delays and minimize downtime. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again.
  • All Fuzion machines are equipped with one per beam. Compatible with the FZ7 (in-line 7) Head. Designed with raised gantry utilization in mind. Purchasing ensures operational continuity if faced with delays and minimize downtime. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again.

Upward Looking Camera (ULC) – for FZ7 (in-line 7) Heads

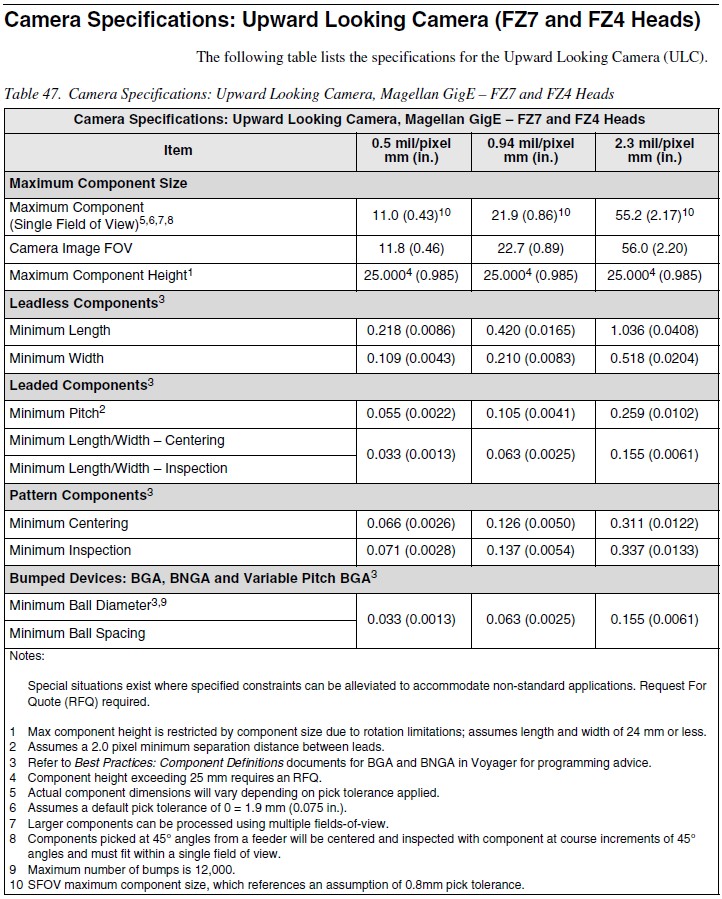

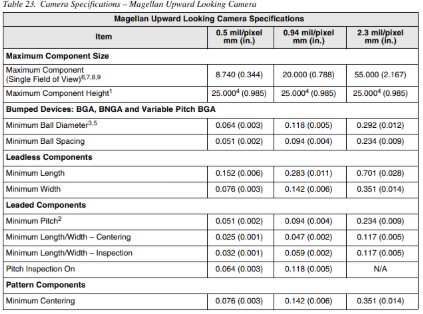

The Fuzion platform machine supports two Magellan Upward Looking Cameras (ULCs): one in the center of the front and/or rear feeder bank.

These cameras employ mega-pixel technology, which maximizes the size of a component that can be centered while imaging a component’s features (ex. leads, bumps and pads.)

For components larger than the camera’s field-of-view, the machine processes multiple images to inspect the component. In this mode, machine through-put is reduced while part range is expanded.

The max component size for imaging on a Magellan ULC is 150 mm square using multiple fields of view.

Want to place an Order? Contact your regional representative here or e-mail one of our spare parts representatives at universal@uic.com.

Click link below for pricing:

Camera Promotion Items & Pricing

Hidden Toggle

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

MAGELLAN UPWARD LOOKING CAMERAS (ULC)

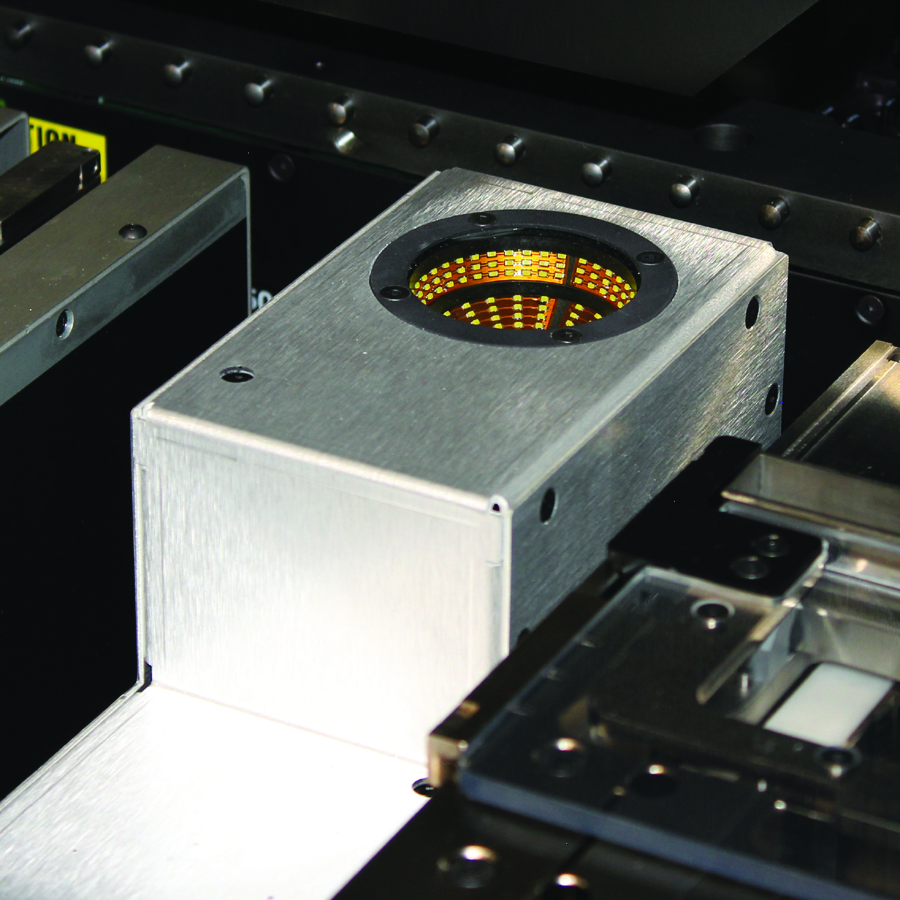

MAGELLAN upward looking camera (ULC) for an FZ7 (in-line 7) head in the Fuzion machine. Camera is stationary and points up to scan materials for inspection.




Part Number
  • 51160902
  • 51161302
  • 51161003
  • 51161102
Item Name
  • MAGELLAN 2.3MPP FIREWIRE UPWARD LOOKING CAMERA ASSEMBLY
  • MAGELLAN 2.3MPP ODD-FORM APPLICATION FIREWIRE UPWARD LOOKING CAMERA ASSEMBLY
  • MAGELLAN 0.5MPP FIREWIRE UPWARD LOOKING CAMERA ASSEMBLY
  • MAGELLAN 0.94MPP FIREWIRE UPWARD LOOKING CAMERA ASSEMBLY
Specifications
  • Upward looking 2.3 mils/pixel camera for FZ7 (in-line 7) Head in the Fuzion machine. Does not travel with the beam - camera faces up to scan materials for inspection.
  • Upward looking 2.3 mils/pixel camera for FZ7 (in-line 7) Head in the Fuzion machine. Does not travel with the beam - camera faces up to scan materials for inspection. This camera is specifically for Odd Form Application, meaning it's used in finding oddly shaped components.
  • Upward looking 0.5 mils/pixel camera for FZ7 (in-line 7) Head in the Fuzion machine. Does not travel with the beam - camera faces up to scan materials for inspection.
  • Upward looking 0.94 mils/pixel camera for FZ7 (in-line 7) Head in the Fuzion machine. Does not travel with the beam - camera faces up to scan materials for inspection.
Functionality
  • Purchasing now is ideal for safety and recovery kits in case of unexpected downtime or delays. New resolutions will reoptimize your line to get better through-put. Allows for more flexibility and optimal performance.
  • Purchasing now is an investment if utilizing machine for odd form application at any time. Optimal for reconfiguration or upgrades; can change, re-calibrate machine and run production again. Ideal for safety and recovery kits in case of unexpected downtime or delays. New resolutions will reoptimize your line to get better through-put. Allows for more flexibility and optimal performance.
  • Purchasing now is ideal for safety and recovery kits in case of unexpected downtime or delays. New resolutions will reoptimize your line to get better through-put. Allows for more flexibility and optimal performance.
  • Purchasing now is ideal for safety and recovery kits in case of unexpected downtime or delays. New resolutions will reoptimize your line to get better through-put. Allows for more flexibility and optimal performance.

Narrow Field-of-View (NFOV) and Wide Field-of-View (WFOV) Cameras – for FZ30 (30-Spindle) Head

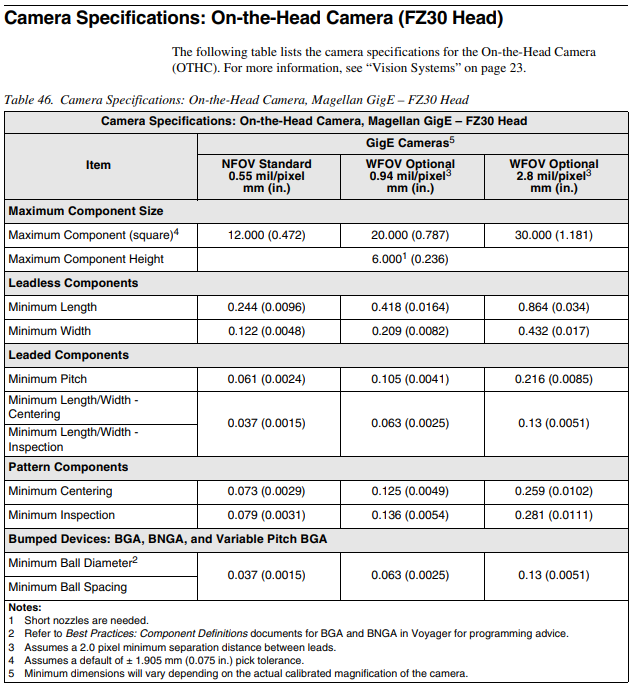

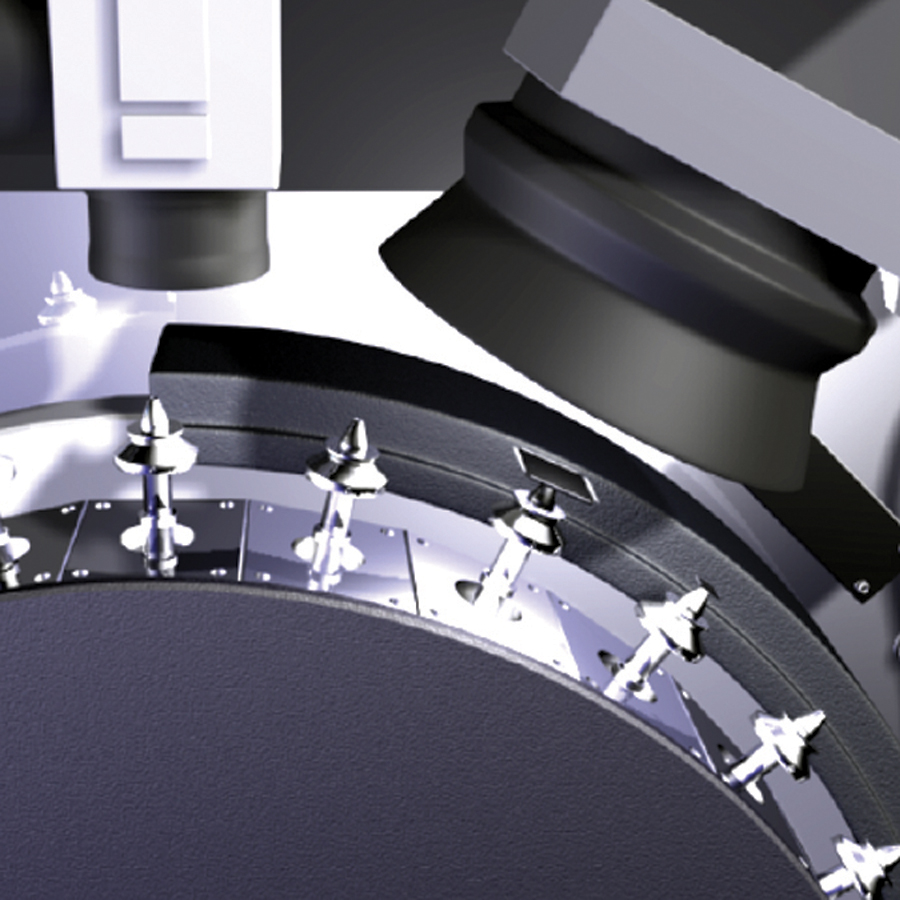

Two on-the-head cameras mount directly to the FZ30 (30-spindle) head and maximize machine efficiency by imaging components while the head travels from the feeders directly to the printed circuit board.

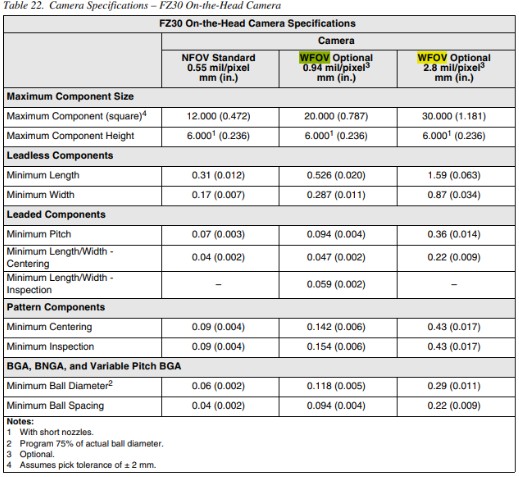

The standard narrow field-of-view camera (0.55 mils/pixel) can image components from 0201m (008004 in.) to 12 mm square.

The two optional wide field-of-view cameras (0.94 and 2.8 mils/pixel) can image components up to 20 mm or 30 mm square.

These cameras are incorporated on the following platform machines:

  • Fuzion1-30
  • Fuzion2-37
  • Fuzion2-60

Want to place an Order? Contact your regional representative here or e-mail one of our spare parts representatives at universal@uic.com.

Click link below for pricing:

Camera Promotion Items & Pricing

Hidden Toggle

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

ON-THE-HEAD CAMERAS

On-the-Head cameras in both narrow and wide fields-of-view. All come with assembly install kits that include but are not limited to: lenses, beam-splitters, cables, mounting screws, cable ties, and an installation document.




Part Number
  • 51388605
  • 51388607
  • 51388606
Item Name
  • 2.8MPP On-The-Head Camera (Wide Field-of-View) & Assembly Install Kit
  • 0.94MPP On-the-Head Camera (Wide Field-of-View) Assembly Install Kit
  • 0.55MPP On-the-Head Camera (Narrow Field-of-View) Assembly Install Kit
Specifications
  • Wide field-of-view, on-the-head 2.8 mils/pixel camera for an FZ30 (30-spindle) head. Kit includes full camera assembly for new install plus components such as but not limited to: lenses, beamsplitters, cables, mounting screws, cable ties, an installation document.
  • Wide field-of-view, on-the-head 0.94 mils/pixel camera for an FZ30 (30-spindle) head. Kit includes full camera assembly for new install plus components such as but not limited to: lenses, beamsplitters, cables, mounting screws, cable ties, an installation document.
  • Narrow field-of-view, on-the-head 0.55 mils/pixel camera for an FZ30 (30-spindle) head. Kit includes full camera assembly for new install plus components such as but not limited to: lenses, beamsplitters, cables, mounting screws, cable ties, an installation document.
Functionality
  • If you have a FZ30 (30-spindle) head, you already have the narrow field of view camera, and would benefit from the additional wide field of view camera as an upgrade. Can replace basler cameras as they are backwards compatible. Allows for more flexibility and optimal performance. New resolutions will reoptimize your line to get better through-put. Wider field of view allows for larger or oddly shaped components to be captured more accurately.
  • If you have a FZ30 (30-spindle) head, you already have the narrow field of view camera, and would benefit from the additional wide field of view camera as an upgrade. Can replace basler cameras as they are backwards compatible. Allows for more flexibility and optimal performance. New resolutions will reoptimize your line get better through-put. Smaller mils per pixel number means higher resolution on image captures.
  • Purchase to ensure cost savings if you need to replace your current on-the-head camera. Could be different magnification than what you currently have on your FZ30 (30-spindle) head. Smaller mils per pixel number means higher resolution on image captures. Can replace basler cameras as they are backwards compatible. Allows for more flexibility and optimal performance.

Conditions:

This program cannot be combined with any other offers, discounts, or Volume Purchase Agreements. This promotion is not available through the online parts store; to receive the discount, you’ll need to go through your regional sales representative.
