Radial 88HT

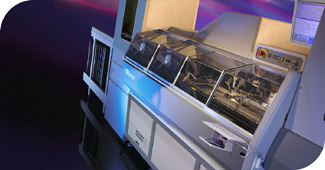

  • Radial_88HT_crop

  • The Radial 88HT offers consistently high throughput regardless of component type, with single-, dual-, triple-, and quad-span insertion variants. Lead span capability up to 10mm virtually eliminates tedious manual assembly requirements to improve throughput, product quality and output per floor space, while reducing associated labor costs and time requirements to provide greater returns. The Radial 88HT delivers exceptional flexibility with over 100 available inputs on the expandable sequencer. An intuitive operator interface that is common with other Generation 88HT equipment offers easy operation, diagnostics, data management and a graphical product editor.

    • 22,000 CPH
    • Highest reliability in the industry (300 ppm)
    • Component replenishment without machine stoppage
    • Manual Load or Automatic PCB Load/Unload
    • Configurable sequencer (In-Line or Straight-Back)
    • Multiple clinch options
    • Component Verifier
    • Simple-to-use operator environment with graphical user interface
    Find Out About Radial 88HT
Radial 88HT Models & Specifications
  • Radial 88HT Single-Span – 2.5mm
  • Radial 88HT Dual-Span – 2.5/5.0mm
  • Radial 88HT Triple-Span – 2.5/5.0/7.5mm
  • Radial 88HT Quad-Span – 2.5/5.0/7.5/10.0mm
Real Throughput
(cph)		Insertion
Directions		Insertion Pitch (mm)Clinch Options
Component SupplyBoard Handling
Load/UnloadComponent InputsSequencer Styles
20,0000 - 360°
(1° inc)		2.5
2.5, 5.0
2.5, 5.0 & 7.5
2.5, 5.0 & 10.0
2.5, 5.0, 7.5 & 10.0
N, T
90 Long
90 Short
(prog height)
Ammo Pack
Reel (all stations)
Manual or
Pass-Through		0 sec
(manual)
2 sec
(pass-through)		20 to 100
(expandable)
In-Line or
Straight Back
