Flexbond

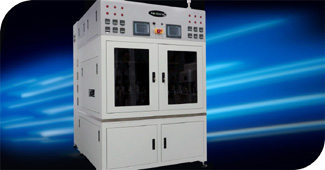

  • Flexbond_crop



  • The Flexbond™ high-throughput hot bar bonding platform enables the first fully automated volume solution for advanced flex circuit and other hot bar interconnect applications. It combines with Universal Instruments’ Fuzion® Platform for full-process integration, including flux transfer, high-accuracy placement and hot bar soldering.

    These configurable solutions have been shown to provide 6X to 12X the throughput of traditional semi-automated assembly stations and more than twice that of alternative automated hot bar solutions while reducing floor space requirements by 80%. They also require significantly fewer machines and offer the lowest OPEX and $/cph/m2.

    • The first high-throughput automated hot bar bonding platform
    • Industry-best performance and a maximum bonding rate of 1800 UPH
    • Dual-zone parallel processing with up to 6 heads per zone, 12 heads total (4X alternative solutions)
    • Programmable, closed-loop temperature control ensures alignment with solder profiles
    • Under-board constant heat balances thermal load for flex-to-flex applications
    • Programmable pressure settings and high-accuracy management provide superior bonding control
    • Conveyor-style architecture with adjustable width adapts to range of applications
    Find Out About Flexbond
Flexbond Specifications
Flexbond Specifications
Max Bonding Rate1800 UPH
Carrier Size100 x 100mm (Min) to 500 x 350mm (Max)
Bond Head ConfigurationDual-zone: 3 or 6 heads per zone
Hot Bar Head HeatingHigh-fidelity pulse heat up to 600°C or constant heat up to 200°C
Under-Board HeatingConstant heat up to 200°C
Temperature Control Accuracy±2°C, Cpk>1.33
Pressure Range0.5 to 12kg
Pressure Control Accuracy±70g per 1kg
Machine Dimensions (W x D x H)1350 x 1500 x 2000mm
