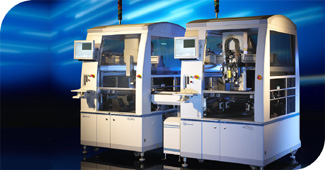

Polaris Servo-Gripper Assembly Cell

  • Polaris_SG_crop
  • Polaris Servo-Gripper Assembly Cell can streamline your manufacturing process by automating reflow odd form assembly, wave solder odd form assembly, or final product assembly. Specialized capabilities include through-hole insertion and surface mount component placement with controlled placement force. The flexibility, optimal utilization levels, and user-friendly design of Polaris Servo-Gripper deliver superior quality products at higher throughput than manual assembly to improve your productivity.

    You can efficiently assemble virtually any non-standard device including:

    • Connectors
    • Transformers
    • Shields
    • Many other non-standard devices
    Find Out About Polaris
Polaris Process Capabilities & Specifications
  • Dispensing – Seals/gaskets, passivation/potting, die/SM component attach, thermal conductivity
  • Bar Code Reading – Bar code readability verification (1D or 2D matrix), traceability of pallet/assembly/piece parts
  • Vision – Optical character verification (OCV)/recognition (OCR), inspect dispensed materials for voids/gaps/presence, piece part inspection/correction, fiducial/pattern inspection
  • Screw Driving – Pneumatic-drive and servo-drive
  • Pick & Place – Mechanical piece parts/assemblies, covers/lids, labels, SM/IM/odd-form components, electronic circuit boards
  • Labeling – Traceability (bar codes), masking, branding/graphics, identification, sealing
X-Y Cartesian GantryX-AxisY-Axis
Travel550mm800mm
Repeatability±0.01mm±0.01mm
Velocity1200mm/sec1200mm/sec
Acceleration1g1g
