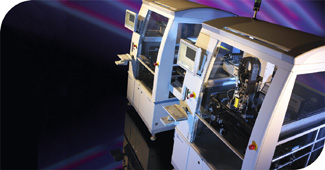

Polaris Multi-Process Assembly Cell

  • Polaris_MP_crop
  • The Polaris Multi-Process Assembly Cell delivers efficient automation of traditionally-manual, back-end assembly processes to realize cost, quality, and throughput improvements. Polaris Multi-Process has the ability to perform multiple operations on a single cell by incorporating up to three quick-release, independent tool modules plus a vision inspection or guidance camera.

    Standard interfaces allow an array of available of tools to be easily integrated to efficiently automate a wide range of assembly processes.

    • Dispensing
    • Bar code reading
    • Vision
    • Screw driving
    • Pick and place
    • Labeling
    • Many other operations
    Find Out About Polaris
Polaris Process Capabilities & Specifications
  • Dispensing – Seals/gaskets, passivation/potting, die/SM component attach, thermal conductivity
  • Bar Code Reading – Bar code readability verification (1D or 2D matrix), traceability of pallet/assembly/piece parts
  • Vision – Optical character verification (OCV)/recognition (OCR), inspect dispensed materials for voids/gaps/presence, piece part inspection/correction, fiducial/pattern inspection
  • Screw Driving – Pneumatic-drive and servo-drive
  • Pick & Place – Mechanical piece parts/assemblies, covers/lids, labels, SM/IM/odd-form components, electronic circuit boards
  • Labeling – Traceability (bar codes), masking, branding/graphics, identification, sealing
X-Y Cartesian GantryX-AxisY-Axis
Travel550mm800mm
Repeatability±0.01mm±0.01mm
Velocity1200mm/sec1200mm/sec
Acceleration1g1g
